Applications
AA-8000 SEU is Type SE, Style U, cable used as an above ground service entrance cable, a panel feeder and in branch circuits. The cable is rated at 600 volts and 90ºC for use in wet and dry locations in accordance with NEC Article 338.
Construction
Conductor: Compact stranded AA-8000 series aluminum conductor material per ASTM B800, ASTM B801, ASTM B836, ASTM B901 (Single Input Wire), as applicable
Insulation: Color coded cross-linked polyethylene (XLPE)

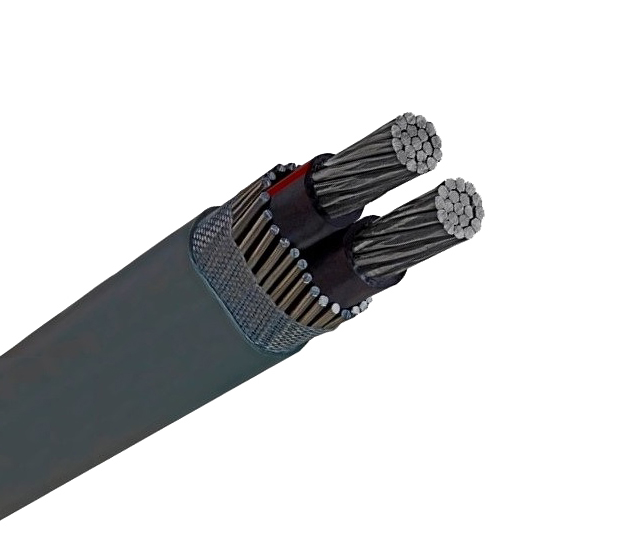

Insulated Assembly: Insulated conductors are laid in a parallel configuration. Solid bare wires are applied concentrically over the conductors, forming the neutral conductor. A flame retardant fiberglass reinforced binder tape assembles the core in a tight configuration.
Jacket: Sunlight resistant, RoHS compliant, flame retardant, gray polyvinyl chloride (PVC) material.
Conductor Identification color coded: Black and Red
Surface Print Legend: [Manufacturer] 8000 TYPE SE - STYLE: U 600V AA-8000-AL [SIZE] AWG (UL) E-49786 SUN RES ROHS (MFG. DATE) (SEQUENTIAL MARKING IN FEET)
Standards
- UL 44
- UL 854: Service Entrance Cables
- Federal specification JC-30B NEC
- RoHS compliant
Packaging
- 250 ft reels
- 500 ft reels
- 1000 ft reels
- Master reels
- Coils
Ampacity
To determine correct ampacity by conductor size, please consult the National Electric Code, Latest edition.
