PACKAGING INFORMATION: Triplex Conductor 600V Secondary Type URD Cable

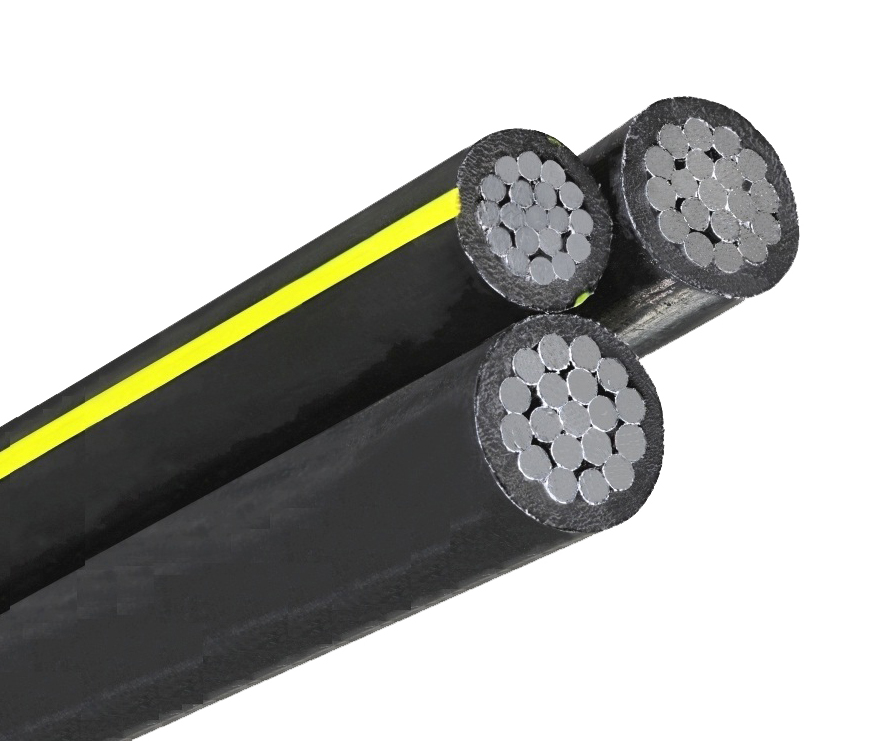

Triplex Conductor Type URD Cable - Aluminum Conductor
| Packaging Information: Triplex Conductor 600V Secondary Type URD Cable | |||||
| CODE WORD |
ALUMINUM CONDUCTORS |
STANDARD PACKAGE SIZES | |||
| CONDUCTOR SIZE AND STRANDING |
NEUTRAL SIZE AND STRANDING |
LENGTH | WEIGHT XLP (lbs) |
REEL SIZE |
|
| Stephens | 7-2 | 4-7 | 1,000 | 262 | NRC 32.24 |
| Ramapo | 7-2 | 2-7 | 1,000 | 291 | NRC 32.24 |
| Brenau | 1/0-19 | 2-7 | 1,000 | 409 | NRC 36.24 |
| Bergen | 1/0-19 | 1/0-19 | 1,000 | 465 | NRC 40.24 |
| Converse | 2/0-19 | 1-19 | 1,000 | 504 | NRC 40.24 |
| Hunter | 2/0-19 | 2/0-19 | 1,000 | 561 | NRC 40.24 |
| Hollins | 3/0-19 | 1/0-19 | 1,000 | 609 | NRC 42.26 |
| Rockland | 3/0-19 | 3/0-19 | 1,000 | 680 | NRC 42.26 |
| Sweetbriar | 4/0-19 | 2/0-19 | 1,000 | 740 | NRC 42.26 |
| Monmouth | 4/0-19 | 4/0-19 | 1,000 | 827 | NRC 45.28 |
| Pratt | 250-37 | 3/0-19 | 1,000 | 896 | NRC 50.32 |
| Wesleyan | 350-37 | 4/0-19 | 1,000 | 1,168 | NRC 50.32 |
| Rider | 500-37 | 350-37 | 1,000 | 1,606 | NRC 58.32 |
